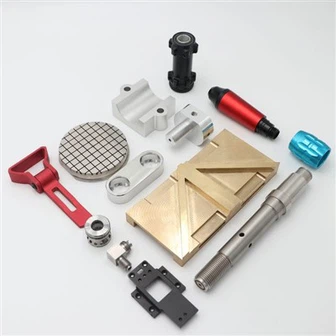

CNC Aluminium Parts
High precision · Fast proofing · Multi-axis machining
Multi-axis machining capability: three-axis / four-axis / five-axis equipment is complete
Fast delivery support: 1 piece minimum order, urgent orders can be arranged quickly
Materials and processes: 6061, 7075, 5052, MIC6 and other aluminum materials; support anodizing, sandblasting, electrophoresis, electroplating, etc.
Product Introduction
We are a company specializing in CNC machining, committed to providing professional CNC aluminium parts (aluminum CNC parts) customized services to customers around the world.
We are good at quickly producing various high-precision CNC aluminium parts according to customer drawings, which are widely used in automation equipment, aerospace, medical equipment, electronics, robots, new energy and other industries, meeting the needs of multiple scenarios such as functional testing, small batch trial production, and mass production.
Processing difficulty case: thin-walled structure and high-tolerance hole matching
The customer needs to customize an aluminum alloy connection module for an optical platform with the following requirements:
Material: Aluminum 7075-T6
Size: 90mm × 60mm × 30mm
Features: The wall thickness on both sides is only 1.2mm, and a set of φ8H7 + φ6 sliding matching holes are opened in the center of the interior, and the assembly accuracy requirements are high
Difficulty analysis
Thin-walled structures are prone to deformation or vibration during processing and clamping, affecting the hole position accuracy;
The two sets of matching holes need to reach H7 tolerance (±0.015mm), with high precision and low tolerance for assembly errors;
If the process is not well controlled during sandblasting + anodizing, micro deformation or dimensional deviation may occur.
Solution
Design flexible fixture + side pressure buffer device to ensure fixation without damaging parts;
Use high speed and low feed for finishing to reduce thermal deformation and chattering;
Precision holes use pre-drilling + reaming + boring tool multi-step process to control tolerance;
After anodizing, perform secondary light finishing + three-coordinate CMM full inspection to ensure final assembly accuracy.
Finally, the first-time delivery pass rate of this batch of CNC aluminium parts reached 99.6%
Application areas (CNC Aluminium Parts)
Industrial automation structural parts
Precision housings for medical devices
UAV and robot parts
Power supply housing, connector panel
Radiator structural parts, rack mounting seat
Consumer electronic product proofing parts, etc.
Welcome to submit drawings or samples for free evaluation and quotation
We focus on high-precision, high-stability and high-efficiency CNC aluminium parts processing and customization services. Welcome to contact us. We will provide professional processing suggestions and formal quotations within 12 hours!
