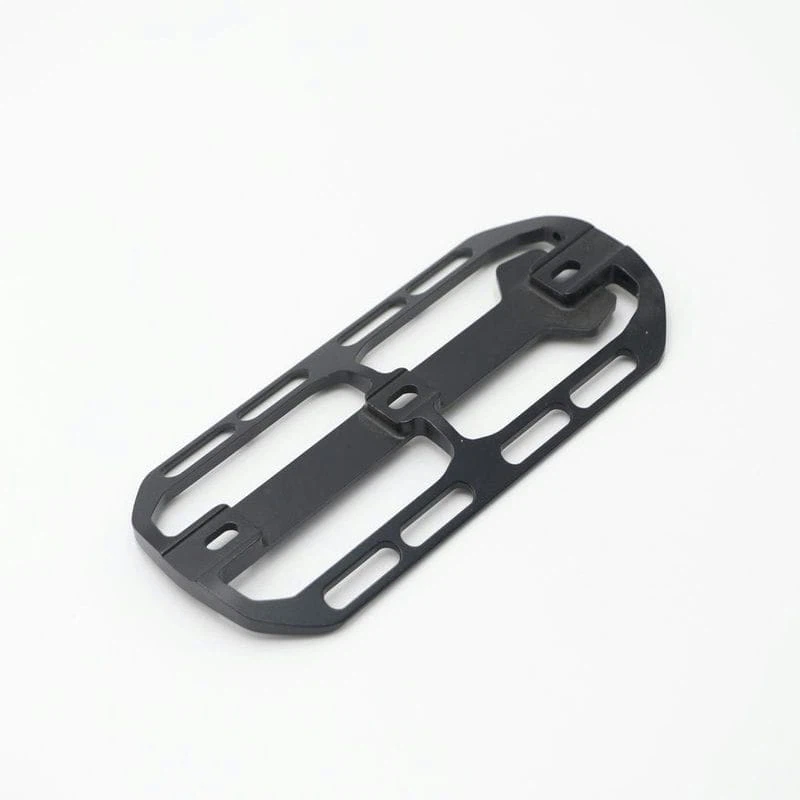

Aluminum CNC Prototype

We are a manufacturing company focusing on precision CNC processing, providing professional aluminum CNC prototype processing (aluminum CNC prototype) services to global customers. With three-axis and five-axis machining centers and high-speed drilling and tapping centers, we can quickly and efficiently turn your creative designs into physical samples to help R&D verification and iteration.

Our aluminum CNC prototype service is widely used in industries such as robots, medical devices, automation equipment, aviation parts, and new energy vehicle accessories, supporting special requirements such as complex structures, multiple slots and holes, thin walls, and tiny details. 1 piece minimum order, delivery time is as fast as 48 hours!

We processed an aluminum alloy probe shell for an optoelectronic company with the following requirements:

Material: 6061-T6

Size: Φ85mm × Height 45mm

Features: The inner cavity of the shell is a thin-walled structure, only 1.2mm thick, containing threads and support ribs

Surface treatment: anodized black, surface Ra≤0.8

The overall concentricity of the part is required to be <0.015mm, and the appearance is free of deformation and indentation

Processing difficulties:
Thin walls are easy to deform, and uneven force or clamping during processing will cause deformation;

Slight structural changes may occur before and after anodizing due to stress release;

The wall contains threads and support ribs, and the space is small, which is inconvenient for processing and measurement;

Use a five-axis machining center with a special light-pressure elastic clamp to ensure clamping while avoiding crushing;

Adopt a staged processing process (rough processing → natural aging → fine processing) to control the release of internal stress;

Use micro-diameter taps and internal cooling cutting fluid on the threaded part to prevent chip blockage and flattening;

After anodizing, perform a secondary slight grinding + CMM inspection to ensure dimensional consistency.

Finally, the aluminum CNC prototype successfully passed the customer's precision assembly test, with a yield rate of 100% and a delivery cycle of only 7 days.

Applicable scenarios (Aluminum CNC Prototype)
Product structure verification and appearance review
Prototype proofing, functional test samples

Exhibition display samples

Small batch verification before rapid bridge mold

First piece confirmation processing of complex structures
