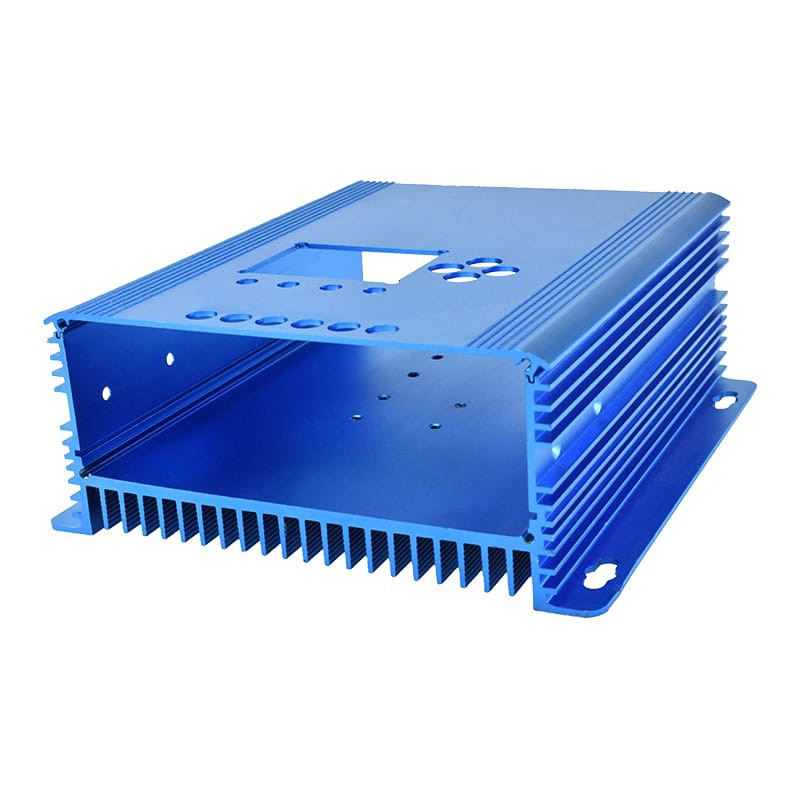

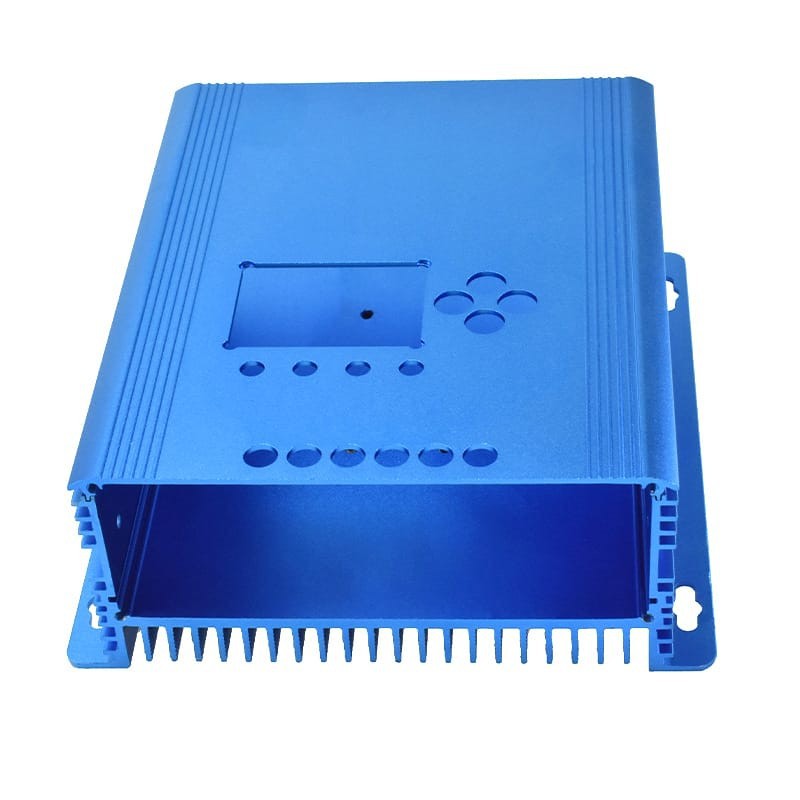

CNC Machined Heat Sinks

We are a manufacturing company specializing in aluminum extrusion profile development and CNC parts processing, focusing on providing high-performance CNC machined heat sinks for customers in various industries. These heat sinks are widely used in LED lighting, power modules, automotive electronics, 5G communications, new energy equipment and other application scenarios that require reliable thermal management.





Through CNC precision machining, we can perform high-precision trimming on the extruded aluminum heat sink, including end milling, drilling, tapping, slot processing, etc., so that the product has higher assembly consistency and thermal conductivity. We provide one-stop service, from extrusion design, mold development, CNC secondary processing to surface treatment, with full internal control, high efficiency and stable quality.





Processing details case: high-performance server module heat sink
A North American customer requested a customized CNC machined heat sink for server cooling system, with extremely high dimensional accuracy requirements:

Radiator size: 210mm × 120mm × 35mm

Material: 6061-T6 aluminum alloy

Features: 60 thin-piece teeth on the top, each piece is 1.2mm thick; both ends need to be milled with smooth rail grooves, and the four corners need to be tapped with M3 deep holes

Requirements: surface roughness Ra<1.0, flatness<0.03mm, all hole position errors<±0.01mm





The heat dissipation teeth are extremely thin, and the CNC clamping and cutting vibrations are large, which are easy to deform;

The distance between the deep hole and the tooth piece is extremely small, and the teeth will be broken and scrapped if there is a slight deviation;

The overall flatness and surface roughness are strictly controlled, and customers use it for high-end electronic equipment

We use the following solutions:

Customized multi-point adsorption vacuum clamps, which can stably clamp without pressing the heat sink;

Use small tool layered slow feed processing + coolant atomization system to effectively reduce vibration marks and thermal deformation;

After processing, use three-coordinate + white light interferometer double detection to ensure that all geometric dimensions are within tolerance.

The final product was delivered smoothly, and customers reported that the thermal conductivity efficiency was excellent and the structural assembly had zero error. At present, an annual frame agreement has been signed for supply.








Integrated service of aluminum profile extrusion and CNC processing, seamless connection, shortened delivery time;
Industry experience, familiar with the assembly specifications and heat dissipation requirements of various heat dissipation products in power supply, LED, communication and other industries;
Prototype to mass production capacity, 1 piece minimum order, stable mass production;

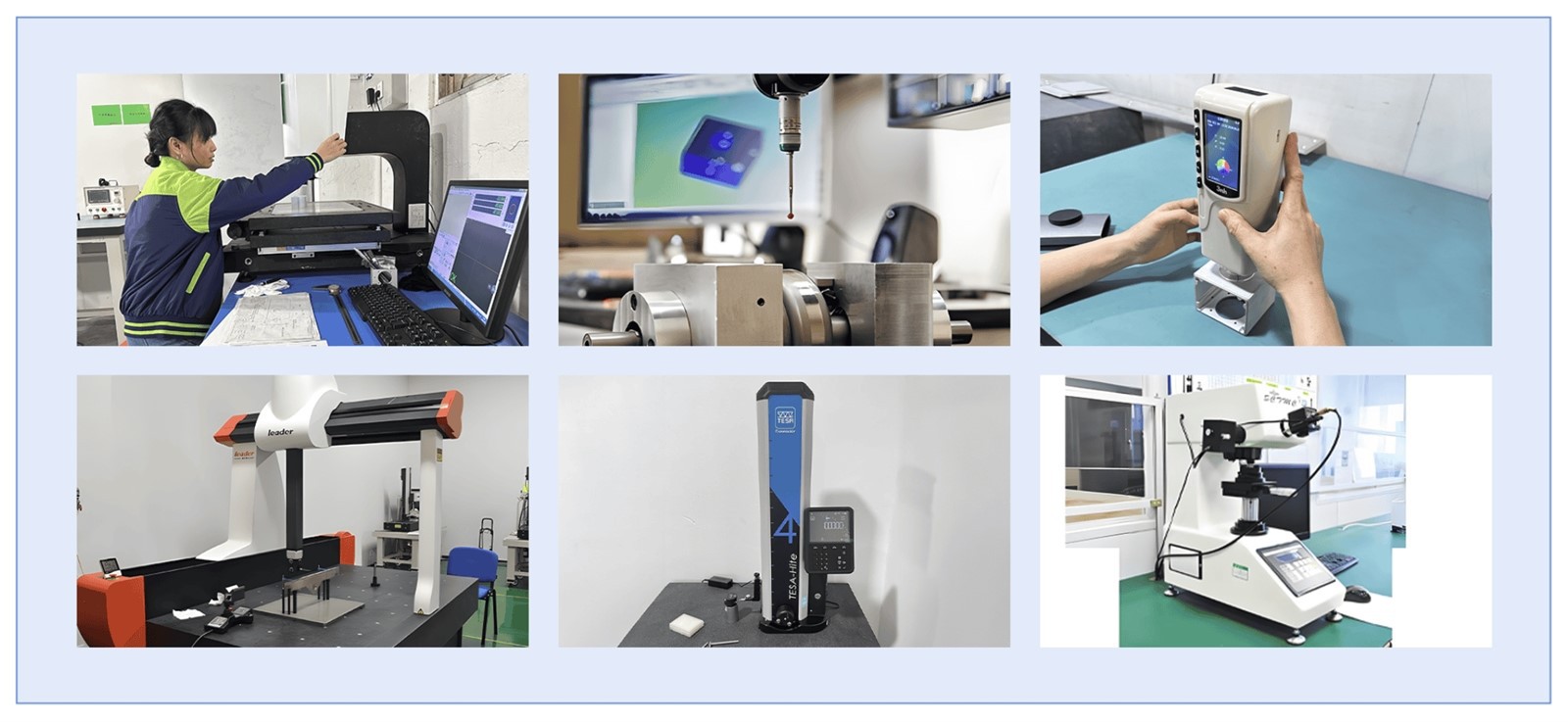

Testing equipment: three-coordinate, surface roughness tester, film thickness tester, hardness tester, etc.;
Export standards: rich experience, in line with RoHS/REACH/ISO requirements in Europe and the United States.







If you are looking for CNC machined heat sinks with high thermal conductivity and high dimensional accuracy, we will be your most trusted partner. Welcome to upload drawings or consult customized requirements, we will provide you with professional quotes and solutions within 24 hours!
